5G Modem Guide: Types, Setup and Buying Tips (2026)
In short, here's what you'll discover in this article: a 5G modem connects to a mobile network through a SIM or supported eSIM, then delivers internet to one device or an entire local network. This guide explains the main hardware formats, the specifications that matter, setup steps, and the common traps to avoid before buying.
What is a 5G modem?
A 5G modem is the cellular part of an internet connection. It authenticates your subscription, communicates with a mobile tower, and converts the radio signal into data that a laptop, router, camera, vehicle, or other device can use.
The word “modem” is often used loosely. A product sold as a 5G modem may be a simple USB adapter, an internal M.2 module, a portable hotspot, or a complete home gateway. The last two also include routing and Wi-Fi functions.
That distinction matters. A modem creates the mobile connection. A router shares that connection between devices. A gateway combines both jobs in one box.
⚠️ 5G cellular and 5 GHz Wi-Fi are different technologies. A dual-band Wi-Fi router marked “5 GHz” does not automatically contain a 5G cellular modem or accept a SIM.

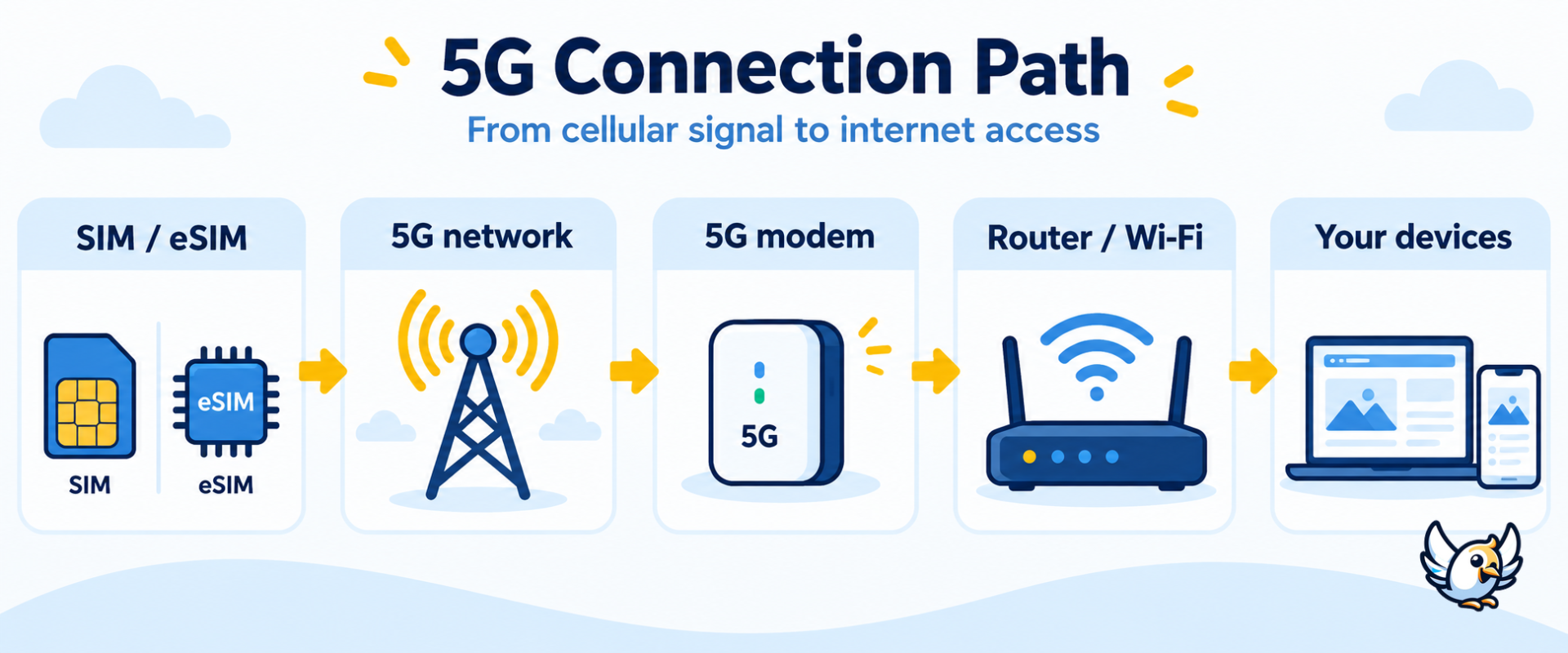

How does a 5G modem work?
The connection begins with a physical SIM or an eSIM profile. The modem uses that subscription to register on a compatible mobile network. It then negotiates a 5G or 4G connection, depending on coverage, supported bands, the data plan, and network conditions.
Once connected, the modem passes internet traffic to the host device. A USB model may serve one computer, while a home gateway distributes the connection through Ethernet and Wi-Fi.
Modern 5G hardware may support sub-6 GHz, mmWave, Standalone and Non-Standalone modes, but support varies by chipset and product. Qualcomm’s 5G modem overview illustrates why band and network-mode support must be checked rather than assumed.

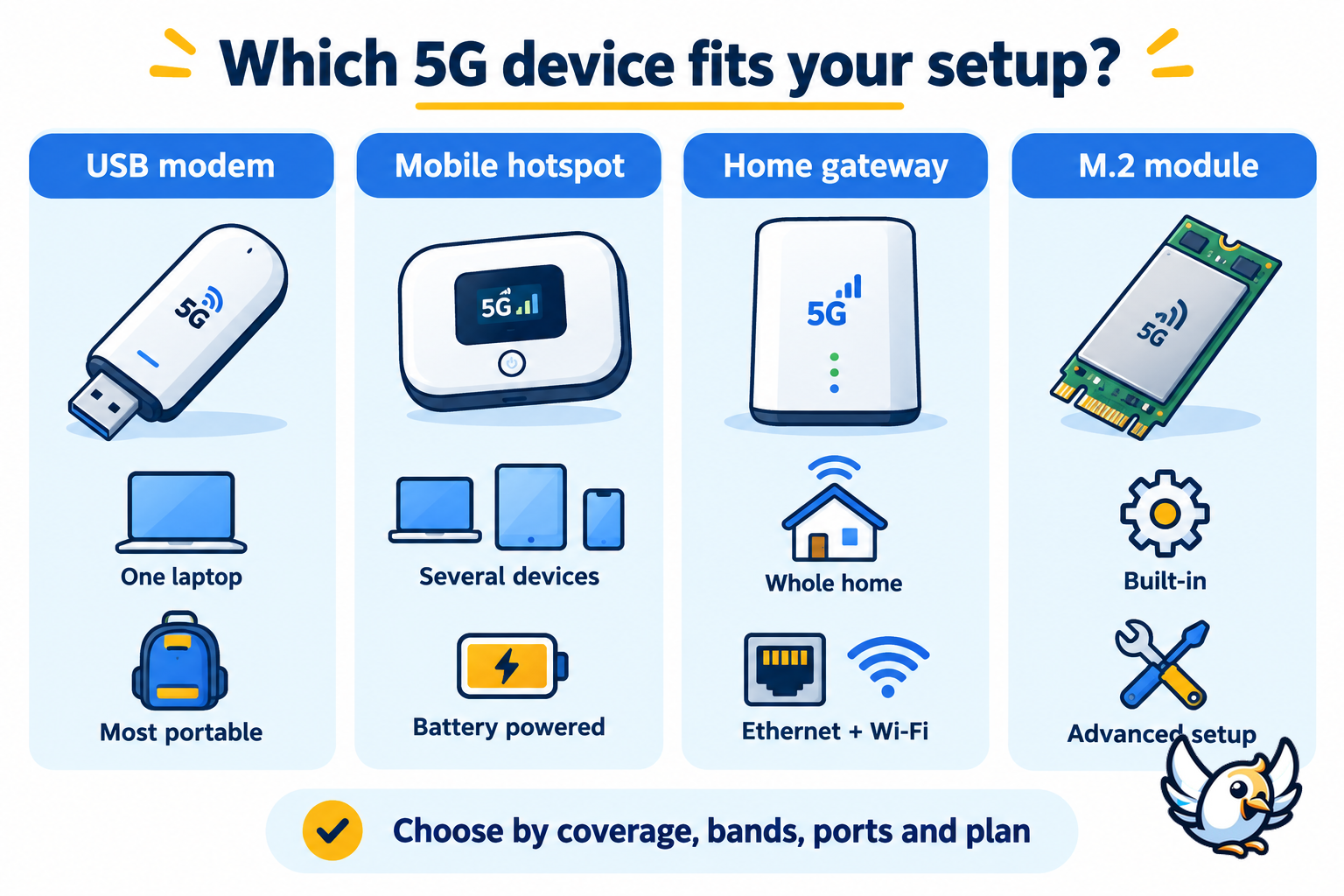

5G modem vs router, hotspot and gateway
| Device | What it does | Best for | Main limitation |
|---|---|---|---|
| USB 5G modem | Connects a compatible computer or router to mobile data | Light travel, field work, one primary device | Driver, power and host compatibility can vary |
| Mobile hotspot | Combines a modem, battery and compact Wi-Fi router | Travel and sharing with several devices | Battery life, heat and Wi-Fi range |
| 5G home gateway | Combines a modem, router, Ethernet and Wi-Fi | Home broadband, small offices and backup internet | Less portable; carrier restrictions may apply |
| M.2 modem module | Adds cellular connectivity inside compatible hardware | Industrial systems, custom routers and embedded PCs | Requires suitable antennas, firmware and technical setup |
A smartphone hotspot can also share 5G, but it is not always the best permanent solution. Heavy tethering drains the phone’s battery, creates heat, and ties your internet connection to a device you may need to carry elsewhere.
Which 5G modem type should you choose?
Start with the use case, not the advertised peak speed. The right format depends on how many devices must connect, whether the system moves, and whether you need Ethernet, external antennas or automatic failover.
- Choose USB for a compact connection to one laptop or a compatible router.
- Choose a mobile hotspot when several people need private Wi-Fi while travelling.
- Choose a home gateway for fixed broadband, Ethernet equipment or wider Wi-Fi coverage.
- Choose an M.2 module only when you can confirm the host interface, antenna connectors, firmware and drivers.
💡 For most non-technical users, a complete gateway is the simplest choice. It avoids the compatibility work involved in pairing a bare modem with separate antennas, an enclosure and a router.
Seven checks before buying a 5G modem
1. Mobile bands and regional compatibility
A modem must support the frequency bands used by your carrier in the country where you will operate it. A device can display “5G” on the box and still miss an important local band. If you travel internationally, compare its full band list with each intended network.
2. Standalone, Non-Standalone and 4G fallback
SA support improves long-term compatibility with networks built around a 5G core. NSA uses 4G infrastructure alongside 5G radio access. Strong LTE fallback is also valuable because 5G coverage can disappear indoors or outside cities.
3. Carrier approval and SIM policy
An unlocked modem is useful, but “unlocked” does not guarantee that every plan will work. Some operators restrict router use, require an approved device identifier, or treat hotspot traffic differently. Check the plan terms before committing.
4. Physical SIM or eSIM
Many 5G modems use a removable SIM. A smaller number support downloadable eSIM profiles. The GSMA explains that eSIM allows a mobile subscription to be securely downloaded to an embedded secure element in a compatible device. Read its consumer and IoT eSIM overview for the underlying model.
⚠️ An eSIM-capable phone does not prove that a separate modem supports eSIM. Confirm the exact model, profile type, activation method and provider policy.
5. Ethernet, Wi-Fi and bridge mode
For home or office use, look for Gigabit or multi-gigabit Ethernet where appropriate, modern Wi-Fi, guest-network controls and enough ports. Advanced users may also need bridge or IP-passthrough mode to connect an existing firewall or mesh system without creating double NAT.
6. Antennas and placement
Radio performance depends heavily on placement. A modest modem near a window can outperform a premium device hidden in a cabinet. External antenna connectors can help in rural buildings, vehicles or rooms with weak indoor reception, but the antenna must match the relevant bands.
7. Power, cooling and updates
Sustained 5G transfers create heat. Check the power supply, operating temperature and ventilation, especially in a car or enclosed cabinet. Firmware updates also matter because they can improve network compatibility, security and stability.
How to set up a 5G modem
- Check the plan and hardware compatibility before inserting or downloading a SIM.
- Install the physical SIM, or add the eSIM profile using the manufacturer’s supported process.
- Place the device in an open, elevated position, preferably near a window.
- Enter the carrier APN only if the modem does not configure it automatically.
- Connect by USB, Ethernet or Wi-Fi, then install any required driver.
- Change the administrator password and Wi-Fi credentials immediately.
- Run several tests at different times and positions before fixing the installation.
Do not judge the connection from the signal bars alone. Test download speed, upload speed, latency and stability. Then move the modem by small distances and repeat the test. Cellular performance can change significantly across a single room.
💡 If the modem keeps falling back to 4G, first verify coverage and bands. Next, update its firmware, check the APN, test another position, and review whether automatic network selection is preferable to forcing 5G.
Choosing a data plan for a 5G modem
A fast modem can consume data quickly when several devices stream video, back up files or download system updates. Estimate usage based on the whole network, not just one laptop.
- Count every phone, computer, TV, camera and smart device.
- Include cloud backups, software updates and video calls.
- Check whether tethering or router use is allowed.
- Review fair-use limits, throttling rules and roaming coverage.
- Keep some allowance for unexpected updates or guest devices.
Use the data estimator to choose a more realistic allowance for travel or backup internet.
How much data for your trip?
Estimate your data needs in seconds based on your habits: streaming, social media, browsing.
Calculate my data needsIf your exact modem supports consumer eSIM activation and the provider permits hotspot or router use, compare established travel eSIM providers before your trip. Compatibility must be verified for the specific modem rather than inferred from phone support.
How to improve 5G modem performance
Start with placement before buying accessories. Keep the modem away from metal cabinets, thick concrete, large appliances and heat sources. A window facing the serving tower may help, although the strongest location is not always the most obvious one.
For a fixed installation, compare performance on Ethernet and Wi-Fi. If Ethernet is stable but Wi-Fi is slow, the cellular modem may be working correctly and the local wireless network may be the bottleneck.
For business backup, configure automatic failover on the main router and test it regularly. A backup link that has not been tested may fail because the SIM expired, the plan changed, or the modem lost its configuration.
Who should buy a 5G modem?
A 5G modem is useful when fibre or cable is unavailable, when you need temporary internet, or when a second connection is important. Typical users include remote workers, travellers, event teams, rural households, small businesses, vehicle operators and anyone building a resilient backup connection.
However, 5G is not automatically better than fixed broadband. Performance varies with coverage, congestion, building materials and carrier policy. Choose it because the mobile network works well at your location, not because the hardware advertises the highest theoretical speed.
FAQ
Can I put any SIM card in a 5G modem?
No. The modem must support the carrier’s bands and network modes, and the plan must permit use in a modem, hotspot or router. The device may also need to be unlocked or approved by the operator.
Does a 5G modem work with 4G?
Most consumer 5G modems include LTE fallback, but you should verify the specification. Good 4G support is important where 5G coverage is weak or unavailable.
Is a 5G modem the same as a 5G router?
Not exactly. The modem creates the cellular connection. The router shares it with local devices. Many products combine both functions and are sold as 5G routers or gateways.
Can I use an eSIM in a 5G modem?
Only if that exact modem supports the required eSIM architecture and activation process. You must also confirm that the chosen provider accepts the device and allows the intended use.
Can a 5G modem replace home broadband?
Yes, when local coverage is strong and the data plan suits your household. Before replacing a fixed line, test performance during busy evening hours and check data limits, latency, port requirements and carrier restrictions.
